GetLoFi LTC1799 Precision Oscillator Clock Module SMT Assembly Video

YouTube Preview Image

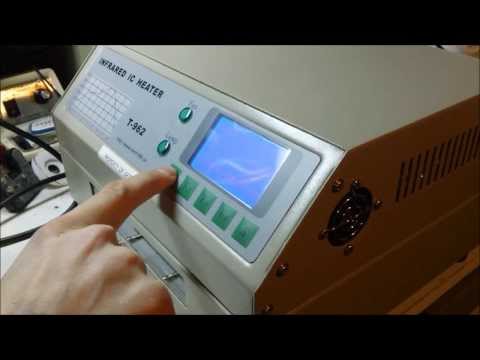

Here is a peak into the assembly process of the LTC 1799 Precision Clock Module used in circuit bending crystal controlled digital cpu devices. As you can see we have eliminated the hand soldering of the SMD components with an T-962 IR Oven this makes each module come out clean and even, with no change of damaging the expensive LTC 1799 IC.  There will be further improvements to the process in the coming months including a redesigned circuit board and a new testing pogo jig.
